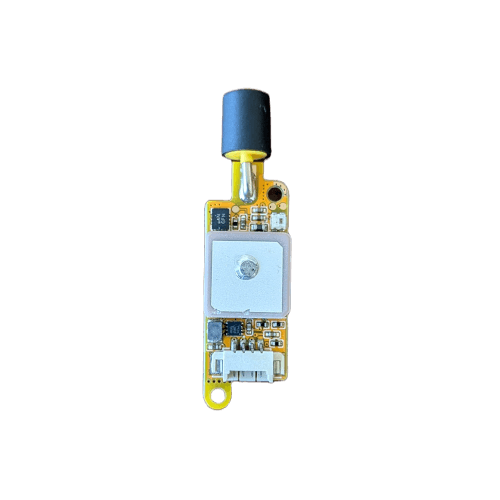

This ultra compact module embeds a latest generation GPS receiver coupled with inertial sensors for high accuracy 3D positionning, and a long range radio downlink. Reperix is the ultimate tool for knowing where your rocket is at all times and never losing it again.
Trajectory recorder
Recovery tracker
Alti/Speedometer
Detailed Features
Reperix
Long-range radio communication
with a ground station and a mobile application, for tracking, telemetry and remote configuration.
High-rate BlackBox
logging your rocket's precise 3D trajectory, orientation and more.
High end UBlox™ GNSS
calculating the position and altitude of your rocket anywhere on Earth using multiple satellite constellations and class-leading signal sensitivity.
Full 3D inertial navigation
Up to ±200G and ±2000°/s
Rocket state detection
will notify you apogee, successful (or not) parachute deployment, balistic impact zone and touchdown.
Auto channel switching
on frequency occupancy, with an optionnal ultra long range unrestricted mode.
Full 3D inertial navigation
Say goodbye to COCOM's 500m/s speed limit on traditional GPS systems!
Reperix embeds 9 different inertial sensors that precisely measure and send you your rocket speed, orientation and altitude even when GPS is blacked out due to legal restrictions.
Ultra compact and convenient format
- Measuring down to 40 by 12mm for 6 grams - It really is the world's smallest GPS rocket tracker!
- M2 breakable mounting tabs
- Overall status LED indicator
- Wide input voltage ranging from 3.2 to 16 volts
High end UBlox™ GNSS
- Up to 80km altitude
- Time-To-First-Fix under 1 minute
- Multiple satellite constellations
- Class-leading signal sensitivity
TheThingsNetwork® supported
Track Reperix at high altitudes almost anywhere in the world.
SETUP GUIDE AND DOCUMENTATION
ReperixTracking mobile app
Realtime telemetry
allows you to easily monitor altitude, speed, acceleration, rocket angle, distance & bearing, GNSS stats and much more.
Voice synthesizer
will continuously speak telemetry data so you can look at your rocket instead of the screen.
World-scale 3D map
will draw the flight trajectory and guide you to your rocket with ease using your smartphone location.
Easy setup
of your SteadyBlue ground station and Reperix's parameters, all remotely.
ReperixTools website
Easy BlackBox download
containing all the data, after your flight, via the usb connector.
Flight replay
shows key flight data, plots, and retraces the trajectory.
Data export
to .csv and .kml files, for more detailed analysis.
Firmware updates
to always fly with the latest best features.
- Manufactured by: Silicdyne
